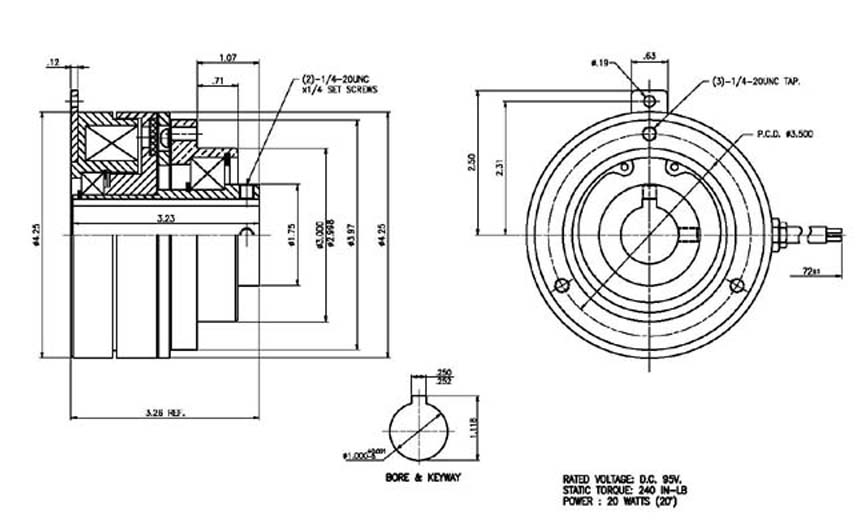

NEW TORQUE Model SC-425 electric clutch, 240 lb. in., nom. 4.25" O.D.

Can be supplied with custom sheave.  Bore size and voltage to be specified.

In the USA and Canada call us at (800) 966-8325.

Click for .PDF file of this electric clutch.

Click here to return to New Torque electric clutches and electric brakes.

Sprocket or pulley attaches to hub using (3) 1/4-20 screws.  Energize the clutch to connect sprocket or pulley to shaft.  De-energize the clutch to disconnect sprocket or pulley from shaft.
