Operation of an Electric Brake

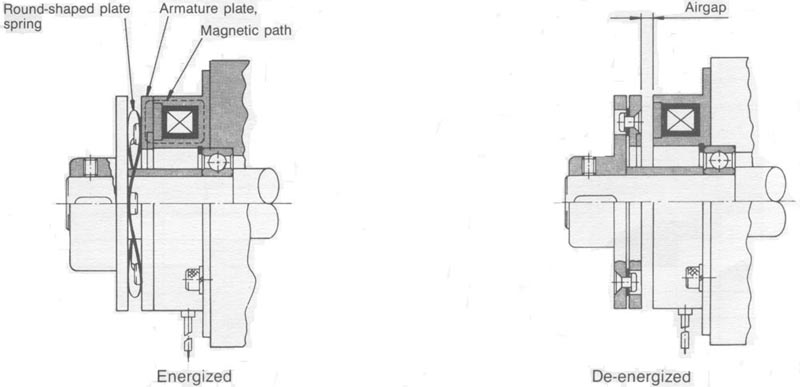

Energizing the electric brake field coil with DC power creates a powerful electromagnet.  The armature plate is pulled onto the brake body with considerable force.  This closes the airgap which stops shaft rotation.
