Model FCH Flange-Mounted Clutch, Armature Mounted on Hub. Go to home page.

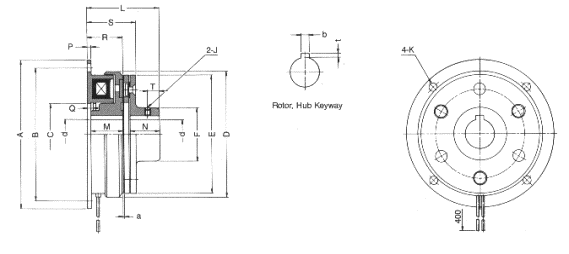

Dimensions in mm.

SIZE		0.6		1.2		2.5		5		10		20
Static Torque, NM		5.5		11		22		45		90		170
Coil Voltage (typical), DCV		24		24		24		24		24		24
Coil Power (at 20C), W		11		15		20		25		35		45
Max. Revolution, RPM		5,000		5,000		4,500		4,000		3,000		2,500
Bore, Rotor & Hub	Dia., dH7	12	15	15	20	20	25	25	30	30	40	40	50
	keyway, bXT	4x1.5	5x2	5x2	5x2	5x2	7x3	7x3	7x3	7x3	10x3.5	10x3.5	12x3.5
Diameter	AH8	80		100		125		150		190		230
	B	72		90		112		137		175		215
	CH7	35		42		52		62		80		100
	D	67		85		106		133		169		212
	E	63		80		100		125		160		200
	F	26		31		42		50		65		85
	J	M4		M5		M5		M6		M6		M8
	K	5		6		7		7		10		10
Length	L	43		51		61		70.5		84.5		100.5
	M	22		24		27		30		34		40
	N	15		20		25		30		38		45
	P	2		2.5		3		3.5		4		5
	Q	3.5		4.3		5		5.5		6		7
	R	24		26.5		30		33.5		37.5		44
	S	31.5		35		41		46.5		53.5		64.5
	T	6		8		10		12		15		18
Air Gap, a		0.2		0.2		0.2		0.2		0.3		0.4
Weight, kg		0.6		1.1		2		3.5		6.9		13
