Model
MCF

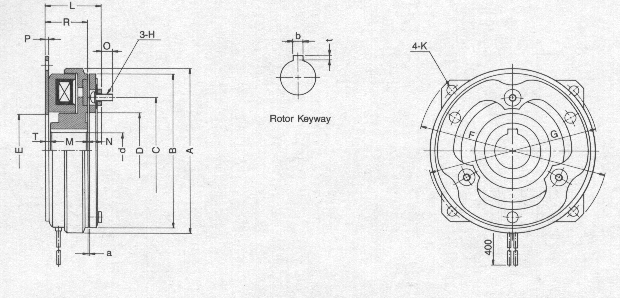

Flange-Mounted Clutch, Customer-Mounted Armature.
Go to home page.
Dimensions in mm.
SIZE
0.6
1.2
2.5
5
10
20
Static Torque, NM
7.5
15
30
60
120
240
Coil Voltage (typical), DCV
24
24
24
24
24
24
Coil Power (at 20C), W
11
15
22
30
38
50
Max. Revolution, RPM
5,000
5,000
4,500
4,000
3,000
2,500
Bore
Dia. (Rotor), d
H7
12
15
20
25
30
40
keyway, bXT
4x1.5
5x2
5x2
7x3
7x3
10x3.5
Diameter
A
74
93
116
144
178
225
B
70
88
110
137
172
217
C
50
60
76
95
120
158
D
36
46
54
67
89
108
E
h8
35
45
52
65
80
100
F
h8
90
110
135
165
210
265
G
80
98
122
150
190
240
H
M3
M4
M5
M6
M8
M10
K
4.5
5.5
6.5
6.5
9
11
Length
L
30
33.5
38.5
44
50.5
60.5
M
22
24
27
30
34
40
N
6
7
8.5
10.5
13
16.5
O
5
6.5
8
11
14
17.5
P
1.6
2
2
2.5
3.2
4
R
24
26.5
30
33.5
37.5
44
T
2
2.5
3
3.5
3.5
4
Air Gap, a
0.2
0.2
0.2
0.2
0.3
0.4
Weight, kg
0.45
0.9
1.65
3.0
5.8
10.5
