Model
FBD

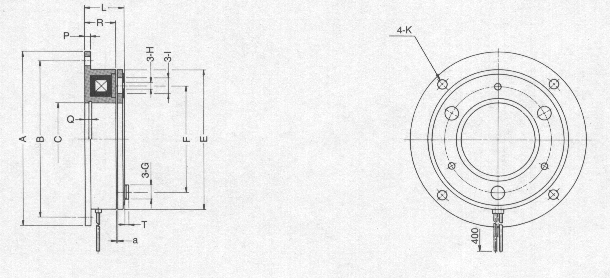

Flange-Mounted Brake, Customer-Mounted Armature.
Go to home page.
Dimensions in mm.
SIZE
0.6
1.2
2.5
5
10
20
Static Torque, NM
7.5
15
30
60
120
240
Coil Voltage (typical), DCV
24
24
24
24
24
24
Coil Power (at 20C), W
11
15
20
25
35
45
Max. Revolution, RPM
5,000
5,000
4,500
4,000
3,000
2,500
Diameter
A
H8
80
100
125
150
190
230
B
72
90
112
137
175
215
C
H7
35
42
52
62
80
100
E
63
80
100
125
160
200
F
46
60
76
95
120
158
G
6
8
10
12
14
16
H
3.1
4.1
5.1
6.1
8.1
10.2
I
8
10
12
15
17
19
K
5
6
7
7
10
10
Length
L
22
24.5
28
31
35
41.5
P
2
2.5
3
3.5
4
5
Q
2.5
4.3
5
5.5
6
7
R
18
20
22
24
26
30
T
2
2
2.5
3
3
4
Air Gap, a
0.2
0.2
0.2
0.2
0.3
0.4
Weight, kg
0.4
0.6
1.0
1.8
3.5
6.5
