Model
FBH

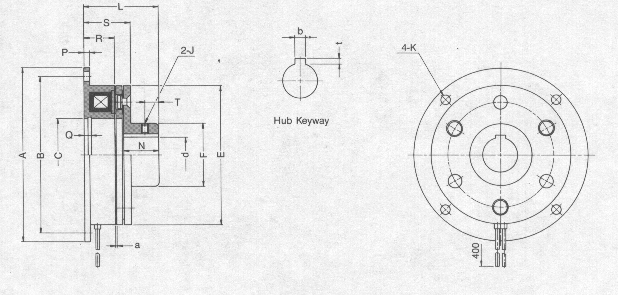

Flange-Mounted Brake, Armature Mounted on Hub.
Go to home page.
Dimensions in mm.
SIZE
0.6
1.2
2.5
5
10
20
Static Torque, NM
7.5
15
30
60
120
240
Coil Voltage (typical), DCV
24
24
24
24
24
24
Coil Power (at 20C), W
11
15
20
25
35
45
Max. Revolution, RPM
5,000
5,000
4,500
4,000
3,000
2,500
Bore, Rotor & Hub
Dia., d
H7
12
15
15
20
20
25
25
30
30
40
40
50
keyway,
bXT
4x1.5
5x2
5x2
5x2
5x2
7x3
7x3
7x3
7x3
10x3.5
10x3.5
12x3.5
Diameter
A
H8
80
100
125
150
190
230
B
72
90
112
137
175
215
C
H7
35
42
52
62
80
100
E
63
80
100
125
160
200
F
26
31
42
50
65
85
J
M4
M5
M5
M6
M6
M8
K
5
6
7
7
10
10
Length
L
37
44.5
53
61
73
86.5
N
15
20
25
30
38
45
P
2
2.5
3
3.5
4
5
Q
3.5
4.3
5
5.5
6
7
R
18
20
22
24
26
30
S
25.5
28.5
33
37
42
50.5
T
6
8
10
12
15
18
Air Gap, a
0.2
0.2
0.2
0.2
0.3
0.4
Weight, kg
0.5
0.8
1.4
2.4
4.8
9.5
