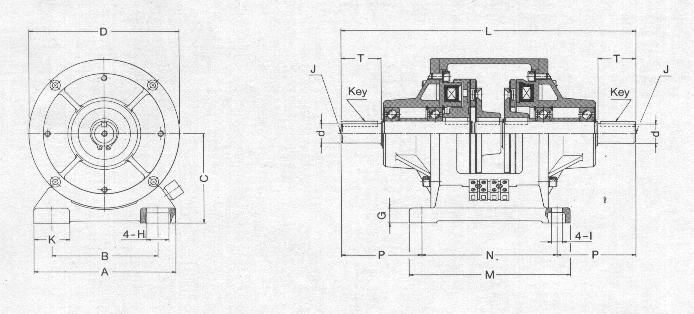

Dimensions in mm.


SIZE		0.6	1.2	2.5	5	10	20
Static Torque, NM		7.5	15	30	60	120	240
Coil Voltage (typical), DCV		24	24	24	24	24	24
Coil Power (at 20C), W		11	15	20	25	35	45
Max. Revolution, RPM		5,000	5,000	4,500	4,000	3,000	2,500
Shaft Dia., dJ6		11	14	19	24	28	38
Key (Shaft), Width X Height		4x4	5x5	5x5	7x7	7x7	10X8
Diameter	A	90	110	140	175	200	240
	B	65	80	105	135	155	195
	C+0/-0.5	65	80	90	112	132	160
	D	100	125	150	190	230	290
	G	10	12	15	15	18	20
	H	13.5	15	20	24	28	28
	I	6.5	9	11	11	14	14
	J	3-M4	3-M4	4-M6	4-M6	4-M6	4-M10
	K	27.5	32	35	42	45	47
Length	L	195	236	295	376	490	616
	M	105	130	160	185	230	270
	N	90	110	135	160	200	240
	P	52.5	63	80	108	145	188
	T	25	30	40	50	60	80
Weight, kg		2.3	4.7	7.6	14.6	25.5	48
